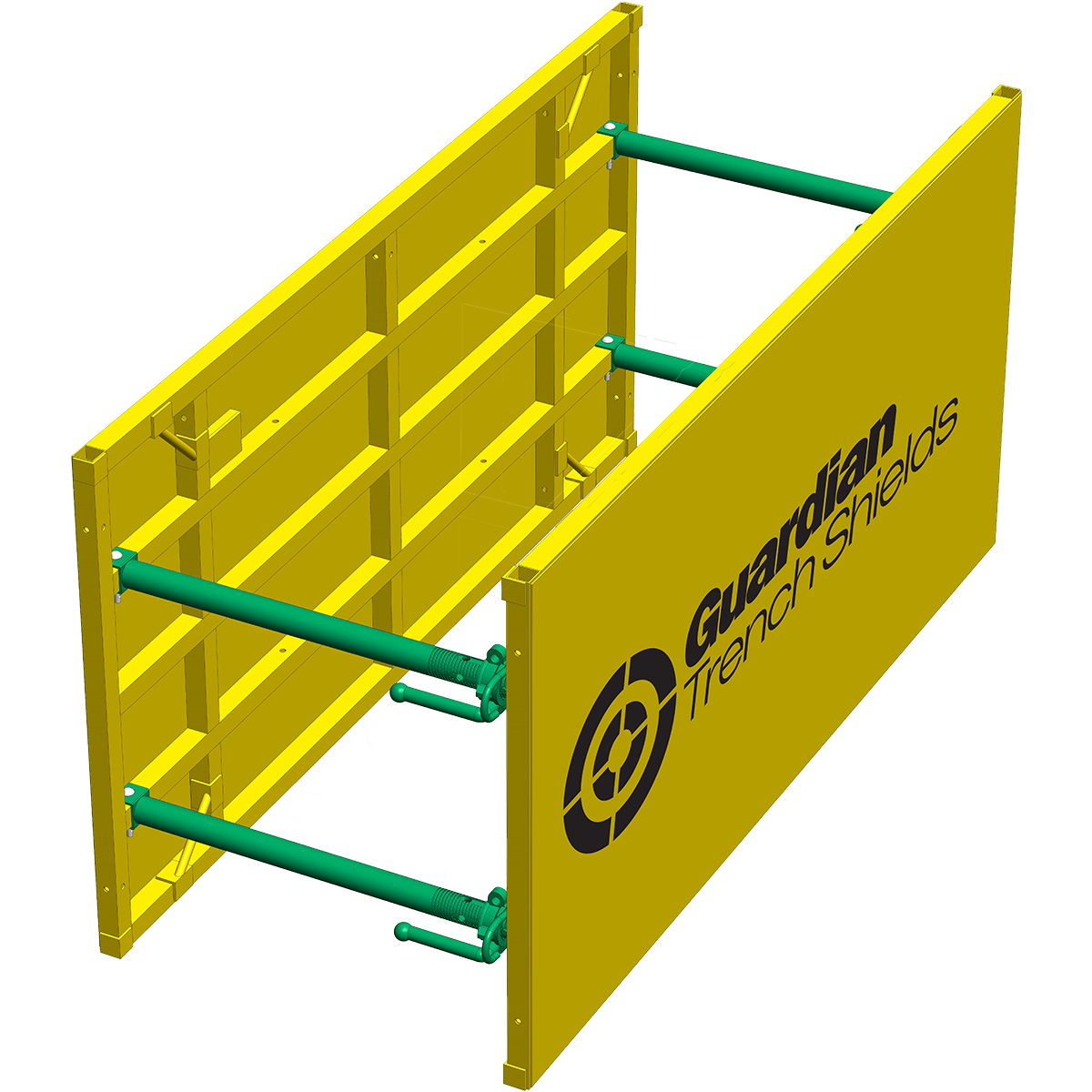

A great lightweight, small all-rounder shield for the drainlayer, contractor, plumber or anyone who needs a shield to do a small trench job. Easily handled by 2 people.
Length (m): 2.4
Height (m): 1.2
Weight Per Set (kg): 150
Stackable: Yes
Inbuilt Lifting Points: Yes
Max Depth (m): 3.6 or 2.4 if on end
Rating (kPa): 20-50 depending on where the struts are located
Wall Thickness (mm): 56
Strut Sizes (m): 0.6 to 0.9
Under Strut Clearance (m): 290
Recommended Machine Size (tonne): 1
Certificates: British and European Standards BS. EN 13331.1 and 13331.2, Australia & New Zealand Standard AS 4744.1-2000 & United States Standard, OSHA Sub Part P
